Understanding Mortises & Tenons in Woodworking

A "mortise" is a precisely cut hole in a piece of wood, designed to fit a corresponding "tenon" from another piece of wood, creating a strong joint called a "mortise and tenon" - essentially, you would use a mortise to securely connect two pieces of wood together, especially when you need a strong, visually appealing joint, like in furniture construction.

Important aspects include function, strength, and application.

Function:

"When we build, let us think that we build for ever." - John Ruskin, from Front Porch Republic

The mortise acts as a socket that receives the tenon, which is the protruding piece of wood that fits into the hole.

Strength:

Mortise and tenon joints are considered one of the strongest wood joinery methods due to their interlocking design.

Common applications:

This joint is frequently used in making furniture like chairs, tables, and doors, where stability and a clean aesthetic are important.

"Never half-ass two things, whole-ass one thing." - Ron Swanson, from GoodReads

How To Cut a Mortise... A Visual Demonstration

To cut a mortise, first accurately mark the mortise location and dimensions on the wood using a combination square and mortise gauge, then use a chisel and mallet to carefully remove the wood within the marked lines, starting with a series of deep cuts along the mortise edges and gradually working towards the center to avoid splintering; for deeper mortises, consider pre-drilling holes with a large drill bit before chiseling out the bulk of the material.

Video Tutorial on Cutting a Mortise and Fitting Its Tenon

How to Cut a Mortise... Step by Step

First, Mark the Mortise

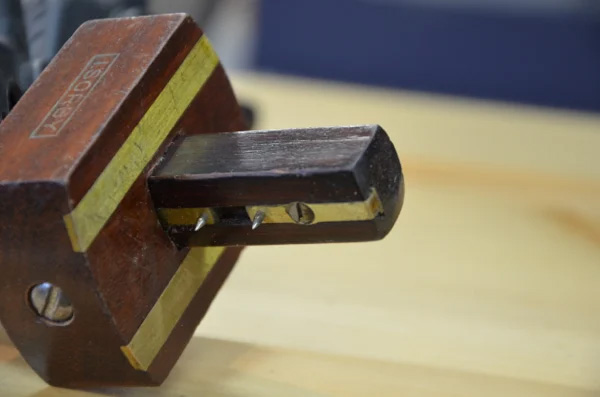

wood marking gauge
Wood marking gauge.
  • Position the workpiece: Secure the board where you want the mortise to be cut on your workbench.
  • Measure and mark:
    • Use a combination square to mark the exact location and width of the mortise on the edge of the board.
    • Set your mortise gauge to the desired depth of the mortise and scribe lines along the edge of the board to mark the mortise thickness.
    • Square the lines across the board using a combination square to ensure straight edges.

Second, Pre-Drilling (Optional)

Deep mortises: For deep mortises, use a large drill bit to drill a series of holes along the marked mortise area, ensuring the holes are close enough to almost connect.

Finally, Chiseling the Mortise

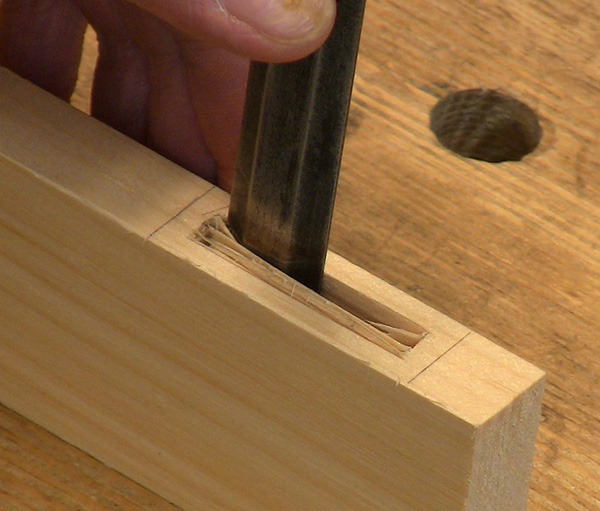

hand chiseling wood from a mortise
Chiseling wood from a mortise.
  • Initial cuts: With a sharp chisel, make deep cuts along the marked lines on the edges of the mortise, creating a "V" shape. Be careful not to chisel too deeply at the edges to prevent splintering.
  • Removing the center: Gradually work your way towards the center of the mortise, using a series of shallow cuts to remove the wood in layers. Use a mallet to strike the chisel for more force when needed, ensuring the chisel is positioned at a proper angle.
  • Cleaning up: Once the majority of the wood is removed, use a sharp chisel to refine the edges of the mortise, ensuring it is square and smooth.
  • Important Considerations:
    • Sharp tools: Always use sharp chisels to prevent splintering and ensure clean cuts.
    • Work with grain: When chiseling, work with the wood grain to avoid tear-out.
    • Test fit: Regularly check the fit of the mortise with the tenon by dry fitting the joint before final assembly.
